Sunday, November 25, 2018

R&R + Complete Tear-down of Ultegra 6703 Triple Crank

I've been riding this new 6703 Ultegra crank for about a year now, so unable to ride while healing up from my crash (quite well, btw) I decided as part of repairing damage to the shifter face plates and handlebar tape, mirror etc. I would perform some long-overdue seasonal cleaning and adjustments.

Having shrunk my handlebar stem from 120mm to 100mm to account for me shrinking with age (EEeeeek!) I needed to shorten and re-thread my shifter and brake cables and housing. Not such a big deal except I have aerobars, a headlight, and a Garmin to accommodate, and it makes for a very busy cockpit to put together.

I also wanted to thoroughly clean the frame, and polish it, which is a lot easier, and really only possible on my bike with the crank pulled. I also pulled off the derailleurs so the frame was completely unencumbered, before threading new shifter cables; a seasonal maintenance thing for me as I'm very active on the gears when riding.

Having pulled the crank I decided to thoroughly clean the chainrings by soaking them in a metal pan, along with the derailleurs, in a solution of Dawn dish soap and distilled water. Placing the pan on my solid-surface stove on a LO setting to get it to a simmer worked great, but I did remove the two plastic pulley-wheels from the back derailleur first.  This is now the best way I know of to clean derailleurs. Tremendous results! I applied T-9 BoeShield, a waxy lube invented by Boeing for cleaning aluminum aircraft parts. (I used pure Teflon grease on the Ceramic Bushing and an ABEC 7 rollerblade oil on the bearing called "Bones Speed Cream" when reassembling the rear derailleur)

This still left the assembly of the crank to be done, and after a few days of being torn down and set aside I had to figure out exactly how it went back together. I Googled for the official Shimano R&R instructions and found most of that targeted at the 2-ring 6700, which left some questions in my mind. Online videos were also not very helpful, but I did find one Blog that was helpful (linked at the bottom here), but even that left some question marks about how to tear down the chainring assembly, vs R&R of the whole crank assembly.

This YouTube video is pretty good at showing the details of how to R&R the crankset, with a few caveats.

1st, hammers and bearings don't mix. Hammering on a bearing peens the balls into the races and ruins the bearings. Plastic and rubber mallets get metal bits embedded in them over time,so hammering any finished surface with them is a BAD idea. If you must risk peening your bearings or breaking them by using a hammer (a VERY crappy idea) put a clean cloth or bit of inner-tube over the surface you are fixing to bash. I've never yet had to do this and think it's a really horrible idea, but hey, it's your pocketbook.

2nd, the Shimano  bottom brackets are all sealed bearing systems, so the lube you put on the spindle is purely for sealing out moisture - which is impossible - and water displacement. The volume of air inside your bike's tubes holds more air when that air is dense(cold) than when thin(hot), so everyday heating and cooling is going to force the frame to "breathe", and if that air has moisture in it, which it will, when it cools beyond the dew-point you will get water inside your frame tubes. Bike mfgs know this, that's why they put a small hole in the bottom of the bottom bracket shell. This doesn't mean grease can't protect your bits from rusting by DISPLACING water, but that's a different requirement than lubricating a bearing or bushing.

3rd, when loosening ANYTHING with a torque specification, just as when tightening it, use a torque sequence, or make one up to follow, and loosen the bolts bit by bit. When R&R-ing the chainrings for example, don't go around, hop back and forth to opposite sides and loosen a bit at a time.

4th, go easy with the little plastic thing-a-magiggy that sets the bearing pre-load. With any sealed bearing the bearing is just slid into position on a tube. As long as that position is maintained it's going to work properly. This in contrast to ball bearings where the cups and cones are ground at ~ 45 degree angle so the pre-load has a big impact on how the balls engage the encasing surfaces. After the 1st ride, recheck the preload and snug it up if it needs it.

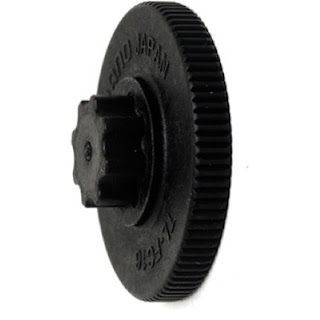

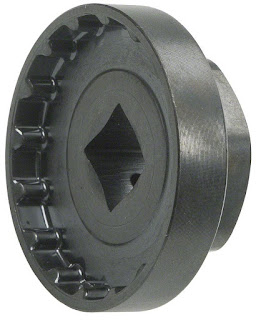

Finally, the polymer tool that comes with Shimano bottom brackets, shown below, will never mark up your BB, so I would RX that over the metal toothed steel wrench seen in the video. It works best with the "socket" style BB tool below that completely covers it. Put the bike on its side like you're branding a calf so you can push against the BB and you can get is as tight as you need it without slipping.








Tearning down the chainrings:

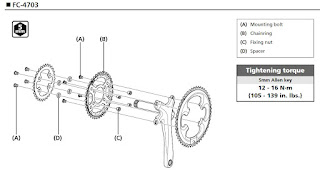

I couldn't find a good video of how to tear down a Hollowtech triple crank, and can't find my tripod to make one myself (yet), but did take some helpful still photos. Note, the comments are on the bottom of the photos. These mostly deal with how to properly align the chainrings before bolting them together.


The 6703 uses Torx-30, not 5mm hex head nuts, but otherwise the same.

When working with a triple like the 6703, take it apart from the smallest to the largest ring, BUT, when reassembling it, put the inner TWO  rings together as a sub-assembly and then bolt that to the spider and outer ring. The torque needed to break the bolts free can then be managed by holding onto the crank arm. Trust me. There  a LOT of ways to get this wrong.


Proper alignment of the outer ring is easy, the chain-drop pin must be centered over the crank arm. If it wasn't, it couldn't keep your chain from falling down into that nasty crack.

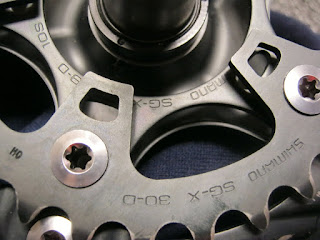

Note there are two registration marks indicating alignment here. A "pip" on the small ring and a ^ mark on the middle ring. Make CERTAIN those are pointing right at the crank arm.



Here you can see the back of the chain-drop pin, pip, and ^ all lined up, pointing at the crank arm.

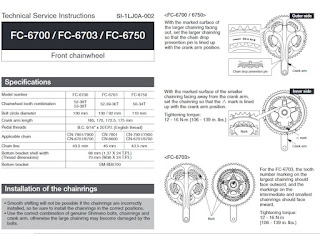

Shimano's official docs make a big deal out of where the stamping are on the chainrings. They're on the outside for the large chainring so Shimano can advertise, but are facing inwards on the middle and smallest chainring - FWIW. Use the registration marks for alignment. The stampings move around all the time, so OK for tooth info, but not for alignment.


Lower right corner points out the chainring stampings as outside on the large ring and inside on the two smaller rings, just in case it isn't obvious.

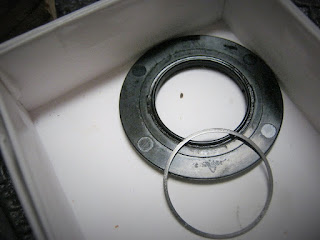

These are the ring and spacer parts referenced in the info box next to #6 in the Shimano doc below. The ring goes on 1st and engages a raised plastic ring on the face of the spacer. The smaller side of the spacer goes towards the BB and the larger diameter side towards the removable crank arm.

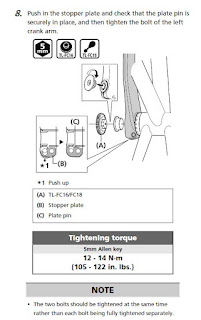

There is a plastic last-ditch retention dohicky (stopper plate; no midnight oil burned naming that!) that engages the hole in the crank seen in the photo  below. The slotted end goes to the outside and the hole goes to the inside. If you can't get this part to seat you have the two crank arms parallel instead of offset 180 degrees.



I'm tempted to scoff at this "lawyer plate", meant to keep Shimano from getting sued, probably for the 2nd time, but actually it's pretty clever and might save you from injury if those pinch bolts both failed, or your brother-in-law isn't quite the mechanic he assured you he was. Plus, it gives you a better indication of how tight those pinch bolts are getting. If you aren't sure, use a torque wrench.


BEFORE tightening the removable crankarm's pinch bolts, BEFORE, set the preload so there is no play in the crank, especially at the ends of the arms. Only when the pre-load is set should you begin locking the crankarm into place by torquing the pinch bolts down, little-by-little, going back and forth between them. Make very sure those pinch bolts and their engagement threads are absolutely clean, and lightly oiled, so you get a good feel or torque reading.

When in doubt, torque it out!


...

Saturday, November 3, 2018

When Luck Runs Thin

Trying to make a right-hand turn with traffic behind me, my back wheel slid out from under me at an intersection the street-sweeper did a PERFECT job of evenly distributing sand all over - the entire 50ft diameter of the intersection. Like greased glass. My 1st crash in 8 years.

While I would normally just extend, crossing into the other lane and going off onto the opposite shoulder, as luck would have it a school just down the street, on what is usually a very quiet street, had just let out, so there was a line of traffic waiting at the stop sign across the street, making this impossible.

I knew immediately upon falling that I had broken something in my hip, and asked they guy who was stopped in front of the stop sign in his SUV if he would take me home. He agreed, so I was able to get home quickly, whereupon Deb took me to the ER. As it happened, the stitches in her hand from a recent surgery had opened up and she was dripping blood all over the place when we got to the house. In the confusion I left my helmet (ruined, I'm sure), sunglasses (ouch), cockpit light and taillight in his car. No contact info was exchanged in the mayhem either, so no way to get in touch with him.

 When we got the results of the X-Ray @ the ER I felt very lucky, as I feared a broken femur, femur head, or pelvis. A fractured pelvis is really quite painful in a very thuddy way, vs a collarbone by contrast, which can be quite a sharp pain. There was no displacement of the bone in my case though, so, again, very lucky.

Road rash was very limited, mostly on my outer thigh, but quite deep. It's still not fully healed. With road rash, more shallow is probably better than a little that is very deep.

Deb stepped off a curb walking the dog 2 years ago almost to the day and sustained the same injury, so I had some idea what I was in for, but I seem to be healing up a lot faster, so perhaps my injury, sustained at 12.3 mph (Thank you Garmin!) was less severe. Let's hope so. Recovery is usually 6-8 weeks, so hoping to ride in 6 weeks. Will play it by ear and try very hard not to re-injure myself between now and then. It was 2 weeks now this Wed, and my mobility is pretty good, but I'm not taking any chances.

It was pretty reassuring that Deb knew exactly where I was, because I've been using LiveTrack on my new Garmin religiously, so she can track me via satellite in real-time. As it was I called her on the phone and told her I had crashed and was on my way home, but it did really freak her out. I guess the problem with her stitches didn't help matters. I had all kinds of problems with my new Edge 520 Plus not syncing with my phone, laptop, Strava, RWGPS, etc. but after a half-dozen mystery updates of Android and Garmin Connect everything started working correctly.

After about a week I took inventory and realized I was going to need to buy some replacement gear. Helmet, sunglasses (auto-darkening bi-focals this time around), taillight, cockpit light, bar tape, and sacrificial shifter fronts that Shimano now spits into an A and a B part, so you have to spend $12x2 plus shipping to replace. Right after they shoot all the lawyers, they need to shoot all the marketing people. A Total Rip-off, but still a lot cheaper than new shifters. (6700 Ultegra are the last triple shifters Shimano made, so those are getting scarce, as well as expensive)

I decided to brighten up the helmet for winter riding, because I often ride until sunset, and potentially after sunset if I have a mechanical, so I went with a color Bell calls "Retina Sear", in favor of the usual red & white scheme I tend to buy. It's a MIPS helmet as well, so I was happy to get it for only $55 from Amazon, though I've been doing a lot of business with BikeTiresDirect.com the last year as I like their membership benefits a lot. I went with a blue flashlight because Van Gogh told me to, and because my headsweat is blue & white, so they should look good together.


On the back of the helmet, below the CygoLite Dice TL-50 (less than 1oz) is a long sticker shaped like an arrow that points to seemingly nothing on the back of the helmet, labeled "reflector", and indeed, the helmet has a reflective stripe across the back. I wish it were red instead of white, but still a nice feature.

Another nice feature of this Bell Falcon helmet is the center vent is uninterrupted by any cross-member except for a slotted one made of the ABS plastic the skeleton of the helmet is comprised of. That leaves almost a full inch of airspace between your head and the top of the helmet all the way down the middle of the helmet. Talk about a vent!

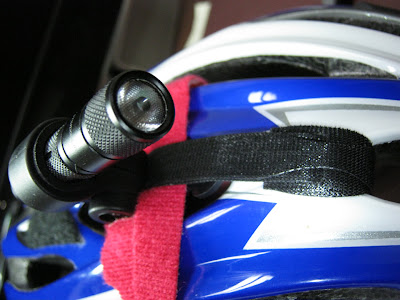

Everything mounted on the helmet is soft-mounted with Velcro so it doesn't interfere with the shell or how it functions. The 85 lumen(max) Fenix E05 blue cockpit light lights up my day-glo yellow PI vest, handlebars, and front wheel, making it easy for motorists to recognize me as a cyclist at night, and allowing me to find the hole in my tire if, despite herculean efforts, goat-heads or thorns manage an unlikely rendezvouses with my tire/s (yes, I've had a couple of double-flats here!)

I still have to retape the bars, and fix the R-shifter, but hopefully sometime between Thanksgiving and Christmas, I will be out there riding again!

Sunday, September 23, 2018

Letters Home from Retirement...

So much has changed since my last post it's hard to know where to start, but the big items would be me moving from Sacramento, home of the greatest bike trail EVER (American River Parkway Trail) to the retirement community of Apple Valley, Ca and taking up riding again after a shocking diagnosis of Non-Alcoholic Fatty Liver Disease (NAFLD).

In short, my liver metabolizes fructose like some people's does alcohol, so aside from eliminating sugar and a lot of starches from my diet, I took up riding again, AND, lost 25lbs. It worked, and my liver is now looking great, not progressing to cirrhosis. With the US experiencing an obesity epidemic, this is destined to become a huge problem in the coming years. As for me, I'm not sure why I developed a problem aside from getting up to 205 lbs (too much retirement I guess).

Three years ago on Sep 13th I drove myself to the ER, as my HR meds had utterly and catastrophically stopped working. My BP was 213/111 after being held 4+ hours before any effective meds were forthcoming. After returning home 3 days latter I began to notice I couldn't find words in conversation, nor when writing, and realized I had a stroke. It took about a year to fully recover from that, so retirement has been a bit challenging medically.

On the plus side, I found a wonderful woman who is a great companion I love spending my days and nights with, and who brings meaning and joy every single day. She did worry about me being so far out on rides though, so offered to pay half the cost of a new Garmin 520+ with LiveTracker, so she knows where I am at all times. It's really a great feature, although getting everything paired, repaired, synched, and updating automatically was a very serious PITA. I almost returned the Garmin before 6-8 Garmin Connect and Android updates made all those issues magically disappear.

To resuming riding, almost exactly a year ago today, I had to learn to breath up here and 3,000ft, and do some long-overdue bike maintenance and; upgrades. To that end I bought a bunch of new tires and tubes, Michelin Pro4 Endurance II or Power Competition for the most part, and a bunch of Conti Race 28 tubes. The high desert is full of nasty thorns and goat-heads.

I replaced the last stock part on the bike, an old FSA crank, with an Ultegra 6700 Triple and DuraAce bottom bracket; the 3rd one now for my '06 Roubaix Elite. I like the smaller ends and fiber over-grip they go on with. No marring of the bearing ends is possible as the fiber is softer than the aluminum ends. The only thing left stock on my Roubaix is now the frame.

I also replaced the SRAM Force Ti brakes with new Ultegra 6800. You may recall a few years ago I discovered some serious pitting on the bridge of the back brake, so this too was overdue. Nothing special about Ultegra brakes, but they match all the other Ultegra 6700 gear on the bike and they were a steal just before Christmas last year.


I also have a good riding partner, though I often ride alone so I can ride at my pace, time of day, etc. I find myself teaching him the same things my original riding partner Bruce taught me 10 yrs ago, and the many, many things riding has taught me through experience.

There's also a bike group here, but they are a bit odd in that they don't have monthly meetings, have no political agenda to move infrastructure forward here, or sponsor events. So far I haven't ridden with them, but I may soon.

In what I thought would be a very red-necked place, and perhaps is in some ways, I have to say the motorists have been great partners in safety for the most part. There are also good places to ride and if you can pick your hours, the weather is pretty accommodating all year around. The roads can be pretty rough here, and asphalt "divots" flipped up on top of the road are common, and VERY dangerous. If you hit one you're almost certainly going down. 100 nights a year with frost play hell with roads that leak water down through their surface.

Afternoon winter rides in the 60s are common, and in the 70s in July & Aug at 6:30AM. The transition is a bit sketchy at times. My last ride though was 2hrs starting at 3:00PM; kind of a gut check, but wanted to make sure I could ride in the mid-day heat before swearing off mornings. Check!

Aside from the new Garmin I have kept improving my lights, and use daylight flashers now all the time as I don't ride at night on purpose (always need to be prepared to continue after dark when riding in the afternoon as mechanicals and flats are always possible) and want to be as visible as possible up to the point where my lights might become annoying. The CygoLite Metro 1100 up front, and Lezyne Laser Drive in back work quite well in conjunction with a small Dice TL-50 Velcro-ed to the back of my helmet (well under 1 oz without the rubber strap mount).

The bike felt a little big to me after 2-3 years off, and I eventually realized that I've shrunk! My always long torso is now about normal, so my 54cm frame now fits me perfectly; I just needed to ditch my 120mm stem for a 100mm and move my seat back. After riding for years in the TT position I am now riding in a classic position, which has been great for both power and endurance, not relying so much on my quads and using all of my leg muscles together.

In late July I added a Topeak ride-fuel bag on the top-tube, which enables me to use a tiny saddle bag, in conjunction to the CO2 bottle holders on my Profile Designs AquaRack. All of this because that Lezyne taillight is pretty big and with a 25oz bottle on each side, I needed the very small bag so the light could get out, and to keep the total weight on the seat-post down.

Finally, 2 weeks ago I bought an arm-band type HR monitor, as 3 chest straps failed to work. It turns out 20+ yrs in the gym leave my pecs pushing any HR strap away from my heart, BUT, the Scosche HR band is much cooler and doesn't restrict my breathing either. It even synched perfectly with my old Garmin Edge 305, AND, at the same time pushed data to my phone via BlueTooth. Mostly though, it's just so comfortable I forget it's there all the time.

I know it's been a long time, but I hope some of you will give me a shout-out and let me know what you're doing these days yourselves.

Tuesday, March 12, 2013

Ultegra 6700 Hub: Near Death Experience

Last fall my back wheel, the expensive, custom built one, developed an annoying creak. It's an Open Pro Mavic Rim attached to an Ultegra 6700 rear hub via 14/15 butted DT spokes on the drive side, and 14/17 super-butted spokes on the NDS.

After spending hours trying to relieve the spokes, and generally driving myself nuts trying to remedy the creak, I gave up and put my nearly identical spare on, and have ridden that the last 8 months. A couple of months ago though, I realized it was time to get ready to replace my "winter" wheel with my summer wheel, and decided to repack the bearings on both in the process of swapping them out.
Parts replace were 5,6,8,9, and 10,11,12,13. Photos are of #10's cup surface
I was shocked to find both cups and cones on the drive side pitted and spalled on my spare wheel, (purchased from PBS at a huge discount). I realized that since it was my spare, and having few miles on it, I had NOT repacked it in 2 years, as it still had factory grease in it. This was either an appalling factory lubrication failure, and/or, a serious QA problem for Shimano. I really have no idea where the blame lies, but you will note there is micro-pitting and a bit of rust all over the cups.

Pitting and spalling of an Ultegra 6700 rear hub
It's important to understand that normally for loose ball bearings, a pitted cup has no remedy, and the hub is ruined - garbage to be hurled into the trash can in disgust. For Shimano hubs (and many others), there is one exception though, and that's the drive-side cup in back, as the cup is actually part of the free-hub body, and is NOT pressed into the hub as all the other cups are, both with front and rear hubs. (the other side of the cup is a cone for the internal free-hub bearing - pretty clever)

I took the good free-hub body off my creaky, custom wheel, the axle with 2 good cones, and was able to put together one good wheel by cannibalizing two bad ones. There's definite advantages in having two identical, or in my case, nearly identical wheels (the PBS wheel uses 14/15 double butted Wheelsmith spokes on both sides). Since rear wheels are much more likely to break than front ones, having two identical rear wheels is much more important. Think about relative tire wear in the front and back, and double or triple that.


 I ordered a new free-hub body from Amazon, and a new cone from Performance Bike Shop, who happen to remember they're a LBS, and should provide this service. They did so after a complete failure the first time (they lost all record and recollection of the order, until I jogged their memory, and then they just shrugged), 6 weeks of waiting, and then a week waiting for the re-order. When I went to pick the drive-side cone up, they informed me they couldn't sell just one - in clear contradiction to the two cones, each with their own part number, plastic bag, and price. I HATE being lied to!!!

$20, plus tax for the two cones, and $45 for the free-hub body. I'd RX getting the 2 cones along with the axle in a rebuild kit for $30 - a better deal IMHO. $65 is a lot of money to put into rebuilding a hub that didn't cost much more than that when I bought it, but the alternative was to toss the entire wheel. Nasty thing, having a nice wheel wrapped around a bad hub. In fairness to PBS, the 2nd mechanic I dealt with was very professional.

I'll see you on the dark side of the moon. Very hard to photograph. These are the best of 100+ attempts.
When the parts came I mounted them on the custom wheel, resigned to having an expensive creaky wheel for all my trouble, but still a spare. I'm not sure if it was the new free-hub, the RnR process, the new cones, new balls, or Teflon grease, but the creak is GONE!

 I now have 2 good wheels, assuming I don't find anymore nasty surprises when I repack my winter wheel, and I have replaced the stock bearings, which have G20 balls, with G10 balls I bought in bulk from Amazon.com. Btw, balls are rated according to their tolerances, so the smaller the number, the tighter the tolerances, and therefore, the better the balls. G10 is as good as steel bearings get. You can get G5 ceramic balls, and that is an advantage in having loose ball hubs. Generally though, my enthusiasm for loose balls has dissipated significantly. ;)

This looks like a spectacular grease failure. I think this was factory grease. I packed the new bearing with pure Teflon grease spread on the cups and cones, and then packed full with Finish Line grease with "some" Teflon in it. I assumed since it contained Teflon, it would be compatible with pure Teflon grease. It's usually a bad idea to mix greases.
 This brings me to an important point. If you have cartridge/sealed bearings, (a misnomer, as all bearings have seals) you don't have to worry about the cups getting pitted or spalled. You replace the cups, cones, balls, and seals whenever you replace the cartridge bearing. The downside is, you're paying a lot of extra money for parts that aren't usually needed, so for any given price point, you get better quality bearings in a loose ball hub, AND, you can get them. Chris King, for example uses his own in-house mfg-ed sealed bearings - which he doesn't sell to the public.

Close to what I've been using, which I purchased at $120 an oz from an aerospace contractor, so it's MIL-Spec. This should work just as well for 1/6th the cost. Spread in zig-zag pattern across the ball path on the cups and cones before packing with the grease below to hold the balls in place while placing them in the cup. The very best grease for preventing spalling is 100% Teflon grease. Hard to find.
Good, basic bearing grease for bikes. Basically, I use it as a filler to displace water and dirt, and let the pure Teflon do the work of keeping the bearings rolling.

There's nothing very hard about replacing or repacking ball bearings, nor free-hub bodies. It pays to swap your wheels out at least once a year, and at least repack them. The G10 balls are going for a dime a piece at Amazon. There are 18 in back and 22 in front. Well worth the trivial expense in my view.
Morningstar Ball Tweezers
Highly recommended is a constant tension ball tweezers. They hold the ball with a constant force, which you relieve when you want to release the ball. This guarantees you don't scratch the ball by squeezing it too hard. It also makes holding the slippery little devils much, much easier, and allows you to press the balls into a cup's grease pack, which will hold the balls in place until you can place the axle and cone to keep them from falling out.

This one has a brass ball holder, which makes scratching a ball impossible. These are tools mechanics treasure. A source of bragging rights for those who know how easily balls can get scratched. When working with bearings, every attempt should be made to maintain a surgically clean environment. A human hair mixed in the grease, speck of dirt, metal fleck, or bit of rubber seal will degrade and/or ruin a bearing. It is absolutely essential that your tools, hands, rags, and general work area be absolutely CLEAN!

I am happy to report that the creak is gone, so almost worth the $65 bucks. Now I can focus on building up a new speed wheel in back, based on my old Alex wheel hub, DT Swiss bladed spokes, and a DT Swiss R585 30mm deep rim. With 24 spokes, and the 30mm profile, it should be slippery, and since the Alex hub is pretty light, a reasonable weight as well.
